Experience the Zendure V Concept
SuperBase V, the first plug-and-play home energy storage system designed to power your entire house. With its user-centric design and cutting-edge technology, SuperBase V sets a new standard for customizable energy ecosystems. This groundbreaking solution redefines home energy storage, providing convenience and efficiency like never before.
Say goodbye to complex installations and hello to a hassle-free energy storage experience. SuperBase V is remarkably easy to set up, allowing you to enjoy the benefits of uninterrupted power in no time. Its user-centric design empowers you to tailor your energy usage according to your unique needs, putting you in control of your energy consumption. With SuperBase V, you can embrace sustainable living and reduce your reliance on the grid while minimizing your carbon footprint.
Experience a new era of home energy storage with SuperBase V and embrace the concept that will transform the way you power your home. It's time to unlock the potential of revolutionary technology and enjoy the convenience, reliability, and customization that SuperBase V brings to your energy ecosystem.

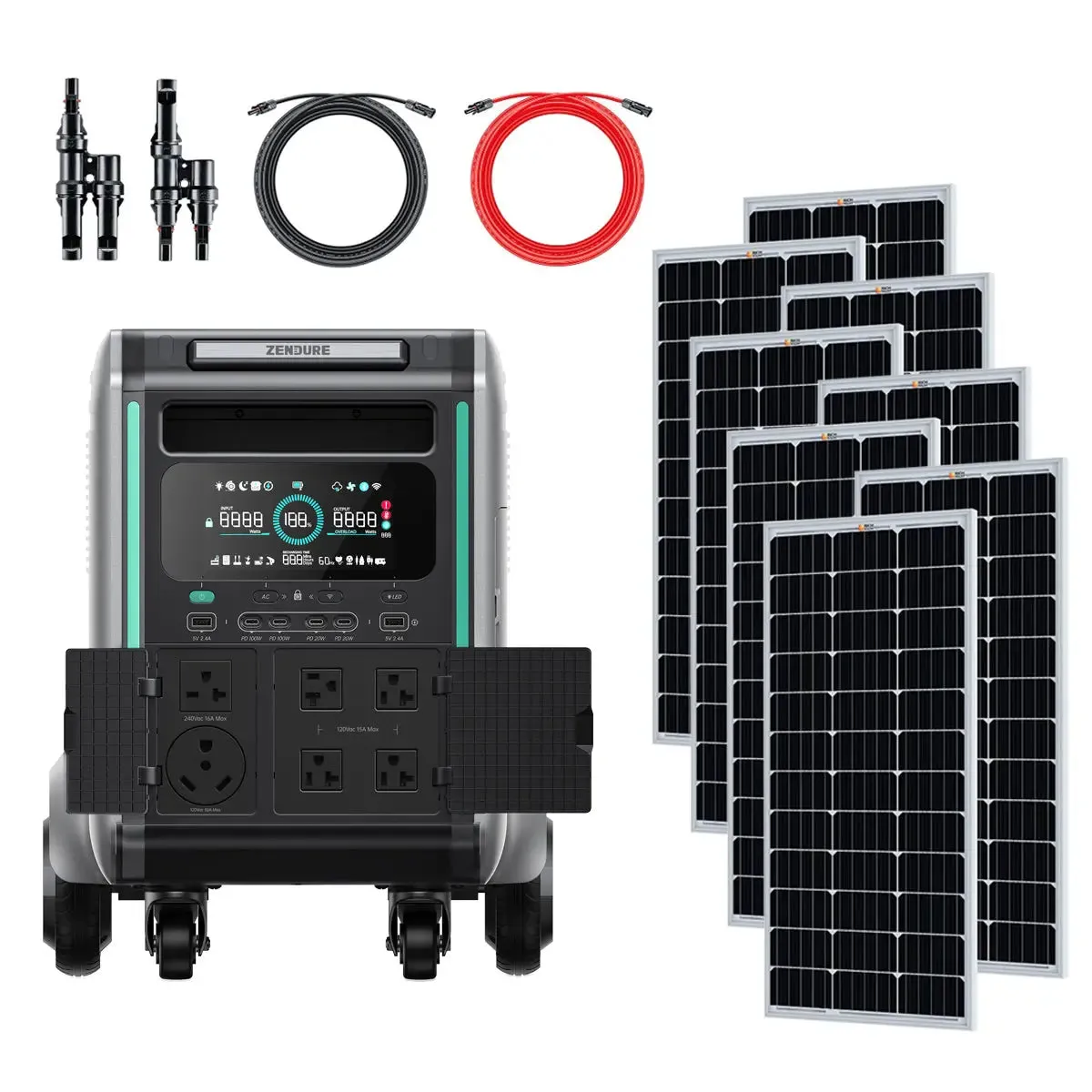

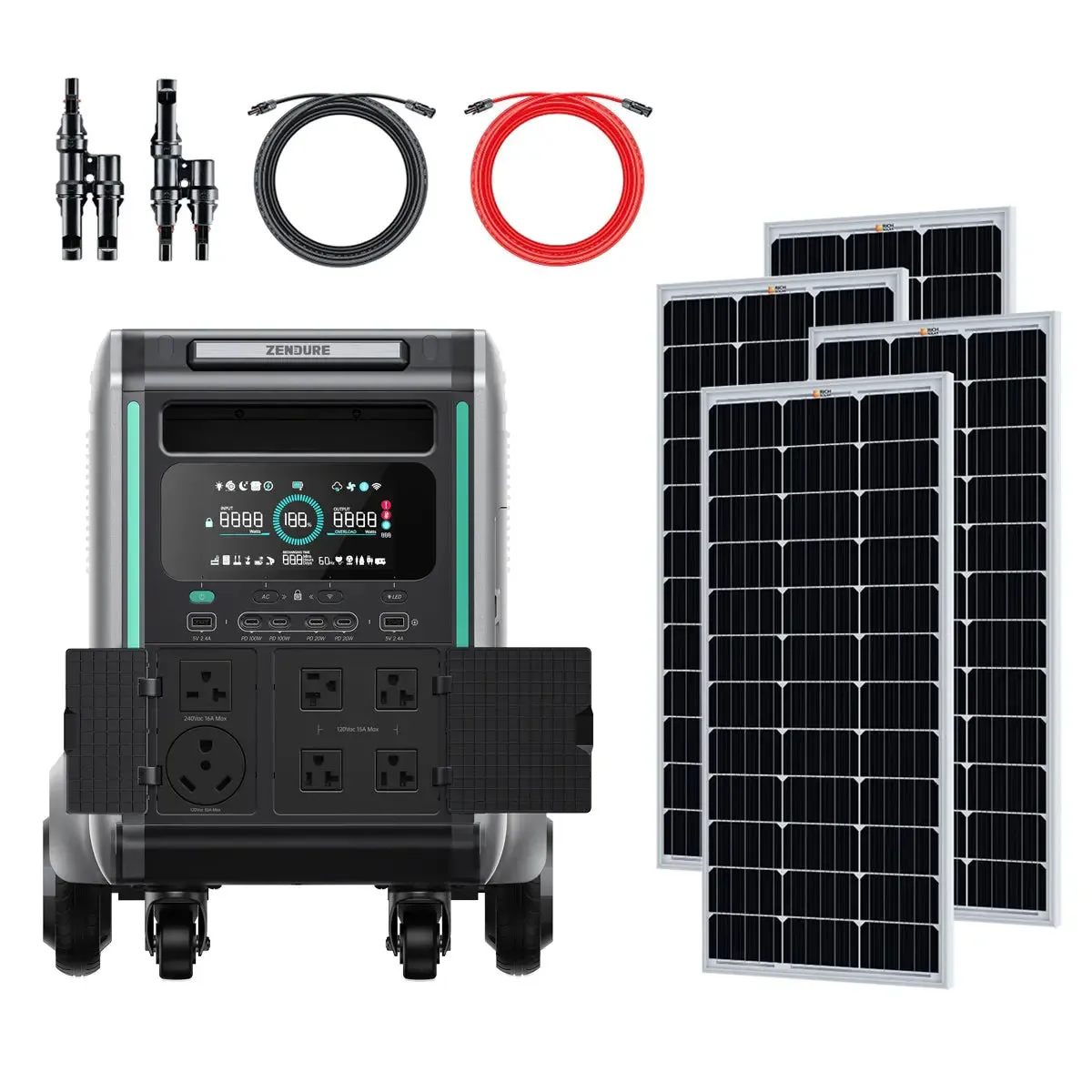

What's Included With Your Order?
- 1 x Zendure SuperBase V6400 (3.8kW Output)

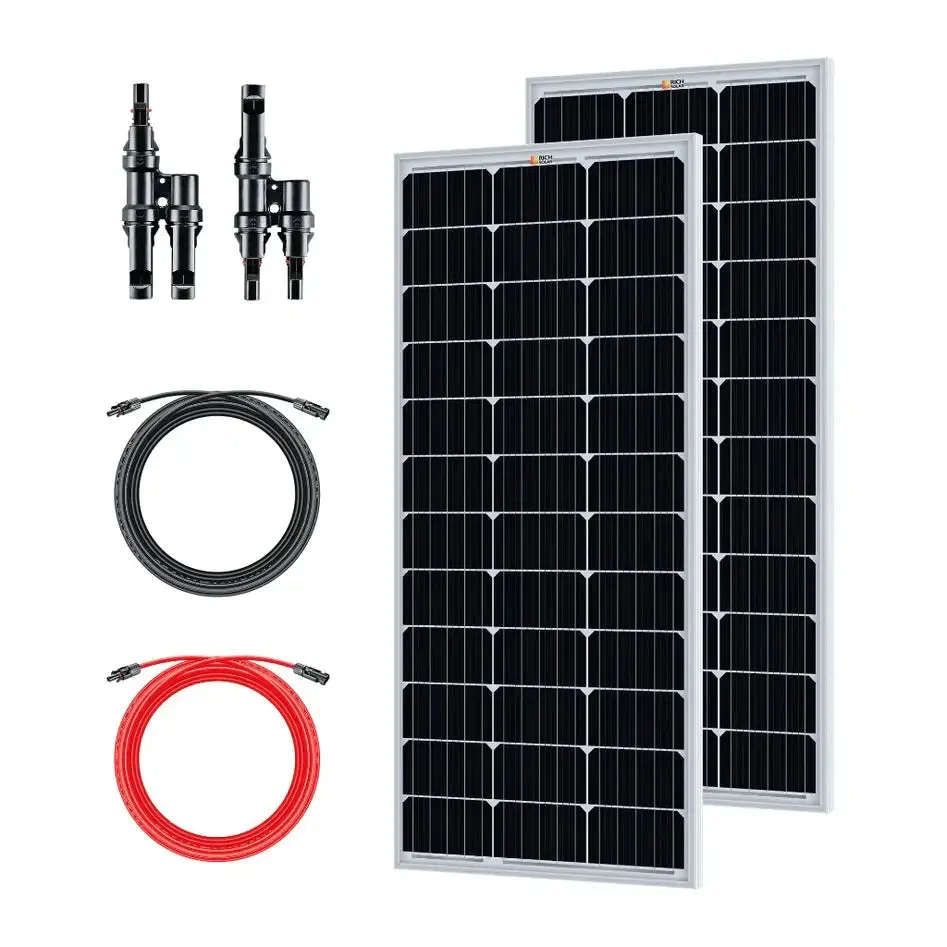

- 4 or 8 x 100W Rigid Mono Solar Panel
- 1 x Solar Charging Cable (MC4 to XT90)
- 1 x 2-Way MC4 Branch Connector for Parallel-Series Connection
- 2 x Sets of 30-foot Solar Extension Cables (2 Red, 2 Black)
- 1 x AC Charging Cord
- 1 x Car Charging Cable

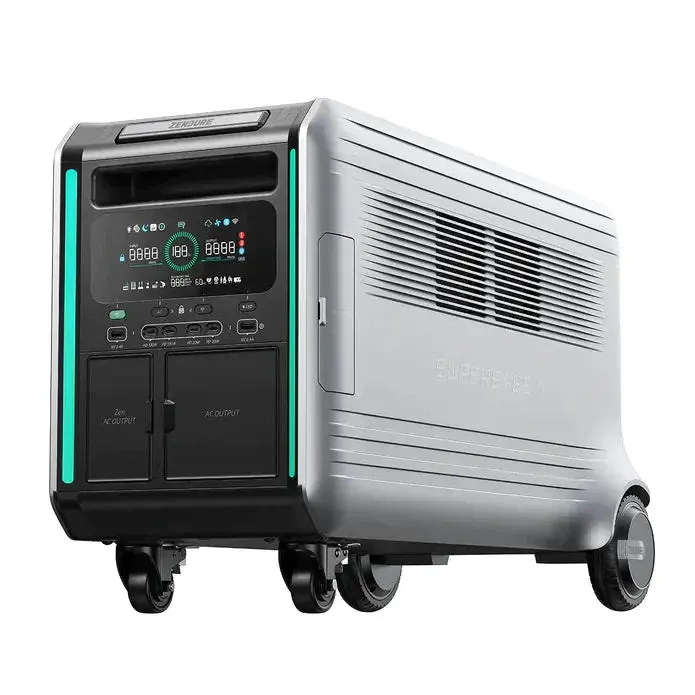

Zendure SuperBase V6400 Specs
| Specification | Value |
|---|---|
| Model | Zendure SuperBase V6400 |
| Battery Capacity | 6,438Wh |
| Rated Power Output (Continuous) | 3800W (120V/240V) |
| Surge Power Output (10 seconds) | 6000W (120V/240V) |
| AC Output Voltage | 120V/240V |
| AC Output Frequency | 60Hz |
| AC Output Waveform | Pure Sine Wave |
| DC Output Voltage | 12V (9A) |
| USB Output | 2 x USB-A (5V/2.4A), 1 x USB-C (5V/3A) |
| USB-C PD Output | 1 x USB-C PD (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A) |
| DC Input Voltage | 11-25V |
| Maximum DC Input Current | 10A |
| Charging Time | Approximately 4-5 hours (from 0% to 80%) |
| Weight | 48.9 lbs (22.2 kg) |
| Dimensions | 19.1 x 10.2 x 14.9 in (48.6 x 26 x 37.8 cm) |
| Warranty | 2 years |
200W Rigid Solar Panel Specs
| Specification | Unit |
|---|---|
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 20.4V |
| Maximum Power Current (Imp) | 9.80A |
| Open Circuit Voltage (Voc) | 24.3V |
| Short Circuit Current (Isc) | 10.2A |
| Maximum System Voltage (Vmax) | 1000VDC |
| Weight | 26.5lb |
| Dimensions | 58.7 in x 26.8 in x 1.4 in |
What a Concept
SuperBase V is the first plug-and-play home energy storage system designed for the whole house. A customizable energy ecosystem with user-centric design and revolutionary technology, SuperBase V sets a new standard for home energy storage.
Intelligent Energy Management
Our Home Panel with EV Outlets connects SuperBase V to your home’s electrical circuits to supply power throughout the house. The Zendure app gives you tools to monitor, manage, and customize your energy use. Using Zendure’s Time of Use tools, you can significantly reduce your energy bill.
EV-Grade Semi-Solid State Batteries
SuperBase V is the world's first home energy storage system with semi-solid state batteries. At more than 228Wh/kg, our semi-solid state batteries have up to 42% more energy per pound compared to lithium iron phosphate (LiFePO4) batteries. And with our battery management software, internal battery life can be an amazing 10 years or more.
6.4 to 64kWh Cpacity
The SuperBase V6400 has a storage capacity of 6.4 kWh (6,438Wh). The maximum configuration for SuperBase V6400 includes two base units and eight Satellite Batteries for a total capacity of 64kWh. This is enough energy to power a typical household for a week or more
3800W to 7600W AC Output
A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.
3000W solar Input
SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.
A Full Charge in 2 Hours
You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.
Plug-and-Play Energy Storage/Use
Home batteries can be quite heavy. SuperBase V’s rear wheels are motorized to help lighten the load. Simply pull the handle and enjoy true portability, even on inclined surfaces.
SuperBase V is made for
Power Independence
- 3800W-7600W AC Output
-
6600W Recharge MAX
Emergency Backup
-
120V/240V Dual Voltage
If your home or worksite includes 240V appliances or power tools, you need an energy storage system capable of high-voltage output. And while other products on the market can provide 120V or 240V, SuperBase V is the first and only system that can supply both at the same time, from a single base unit, thanks to our patented GridFlow 2.0 Real-Time Bidirectional Inverting Technology. This also makes 240V on the road a reality, making it an ideal worksite companion.
-
3800W-7600W AC Output
A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.
EV
-
Level-2 Fast Charge
-
Home panel with 2 EV Outlets
With 2 EV outlets (integrated 14-50 and 6-20 EV outlets) and up to 12,000W of power distribution*, you can quickly charge two electric vehicles at the same time.
Outdoor Life
- Motorized Wheels
RV Life
-
3000W Solar Input
SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.
